Why Infrared Welding Machines Are Important for High-Purity Water Pipelines

mmtech

·June 9, 2026

·6 min read

Why Infrared Welding Machines Are Important for High-Purity Water Pipelines

You need pure water pipelines that do not let in dirt or risk safety. Joints must be strong, smooth, and have no problems. Advanced machines like the IR-110 CNC Infrared Welding Machine help with this. They make welds with very small inside beads. Industry rules like SEMI F57/F40 require this level of purity and trust. Old ways often cannot promise this.

Key Takeaways

Infrared welding machines make clean and strong joints for high-purity water pipelines. This stops dirt and particles from getting in and causing contamination.
Infrared welding uses heat without touching the parts. This removes risks that come with old ways of welding. It gives the same good weld every time and means less fixing is needed.
Industries like pharmaceuticals and semiconductors use infrared welding. It helps them meet strict purity rules and makes their systems work better.

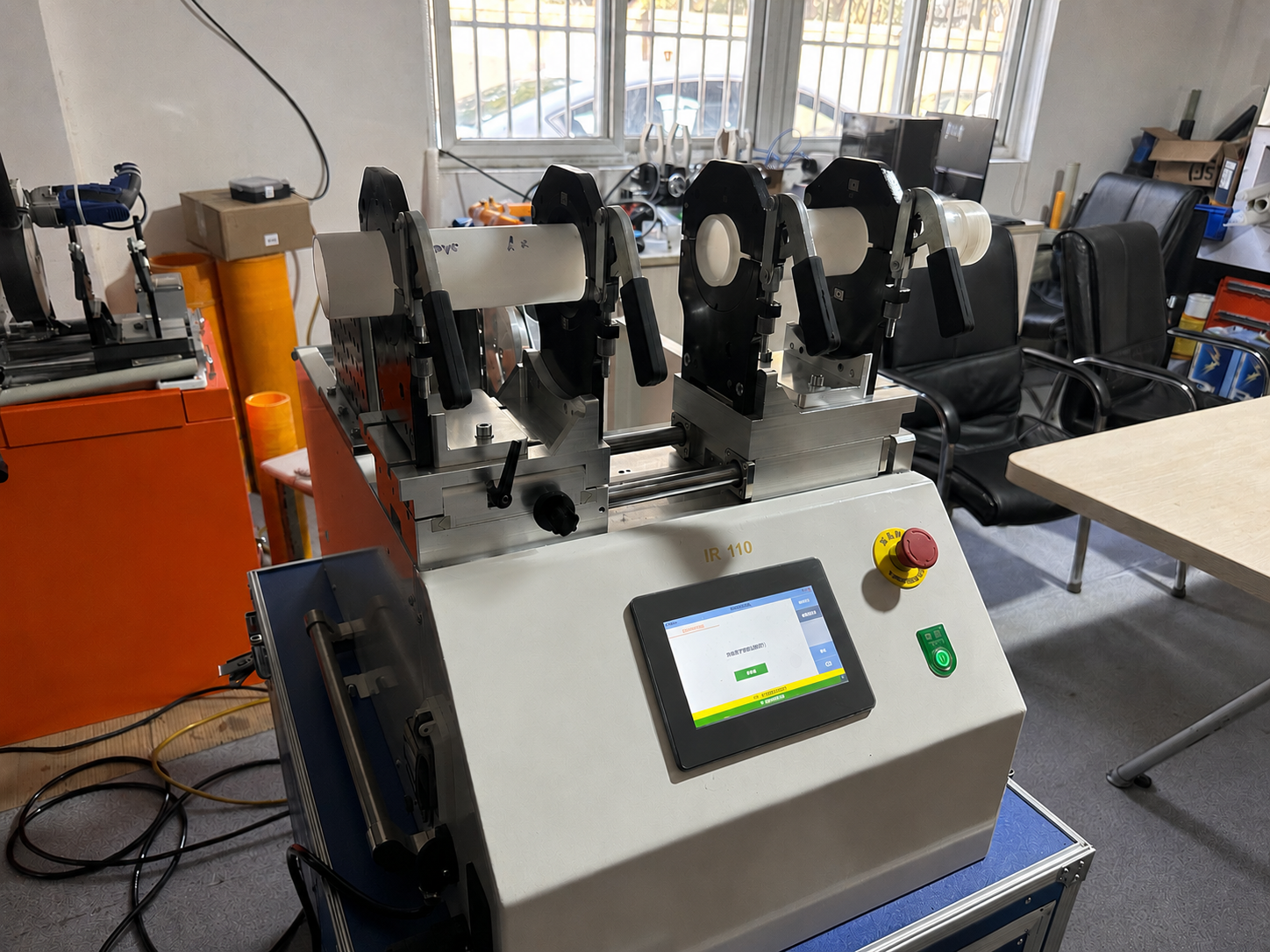

Infrared Welding Machine Technology

Non-Contact Welding Process

You want your water pipes to stay clean and safe. The Infrared Welding Machine from MM-Tech uses a process where the heater does not touch the pipe. It uses infrared light to melt pipe ends. This keeps dirt and particles out of your water system.

Here is a table that shows how non-contact infrared welding helps keep your system pure:

Key Aspect	Explanation
Non-contact heating	Stops material contamination from the heater, so welding is cleaner.
Precise heating recipe	Makes small weld beads inside, so bacteria and biofilm have less space to grow.
Automation	Lowers mistakes, keeps results the same, and makes sure the system is reliable.
Force-controlled joining	Checks and changes joining force to stop defects like “cold welds,” so welds are strong.

This process gives you a big advantage. You get joints that are smooth and clean. You also avoid contamination risks from older welding methods.

Precision and Purity in Pipe Joints

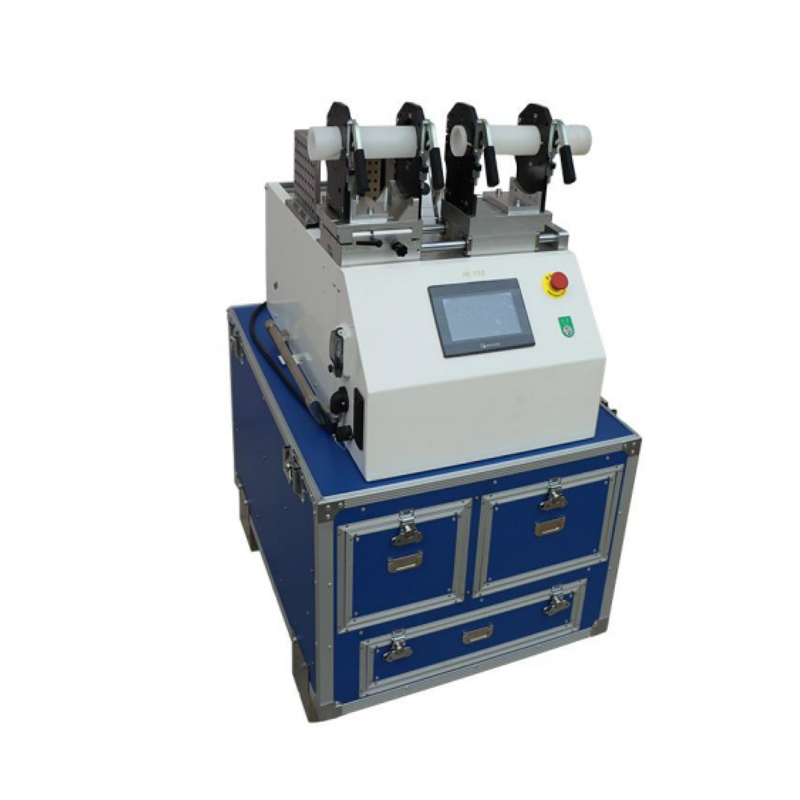

Every weld needs to be perfect. The IR-110 CNC Infrared Welding Machine uses CNC automation to make each weld the same. The machine has servo motors, temperature sensors, and pressure monitors. These parts work together to control welding with high accuracy.

Here is a table that shows how the machine keeps welds precise:

Component	Specification
Servo Motors	0.1μm precision
Temperature Sensors	±0.5°C accuracy
Pressure Monitoring System	0.1 MPa resolution
Documented Repeatability	99.7%

You can trust every joint will meet strict standards. The Infrared Welding Machine works with plastics like PVDF, PP, and PFA. These materials are good for high-purity water systems because they do not leak chemicals or break easily.

You must follow rules for water quality. Welds in high-purity pipelines must meet standards for resistivity and total organic carbon (TOC). The Infrared Welding Machine helps you meet these rules. It keeps the weld area clean and uses force-control technology. This stops extra melted plastic from getting into the water and keeps the weld strong.

Note: Infrared welding machines use non-contact heating, so you do not have to worry about outside contamination. This makes them a top choice for high-purity water systems.

Many industries choose this technology. You get joints that are clean, smooth, and strong. You also meet important rules and keep your water pure.

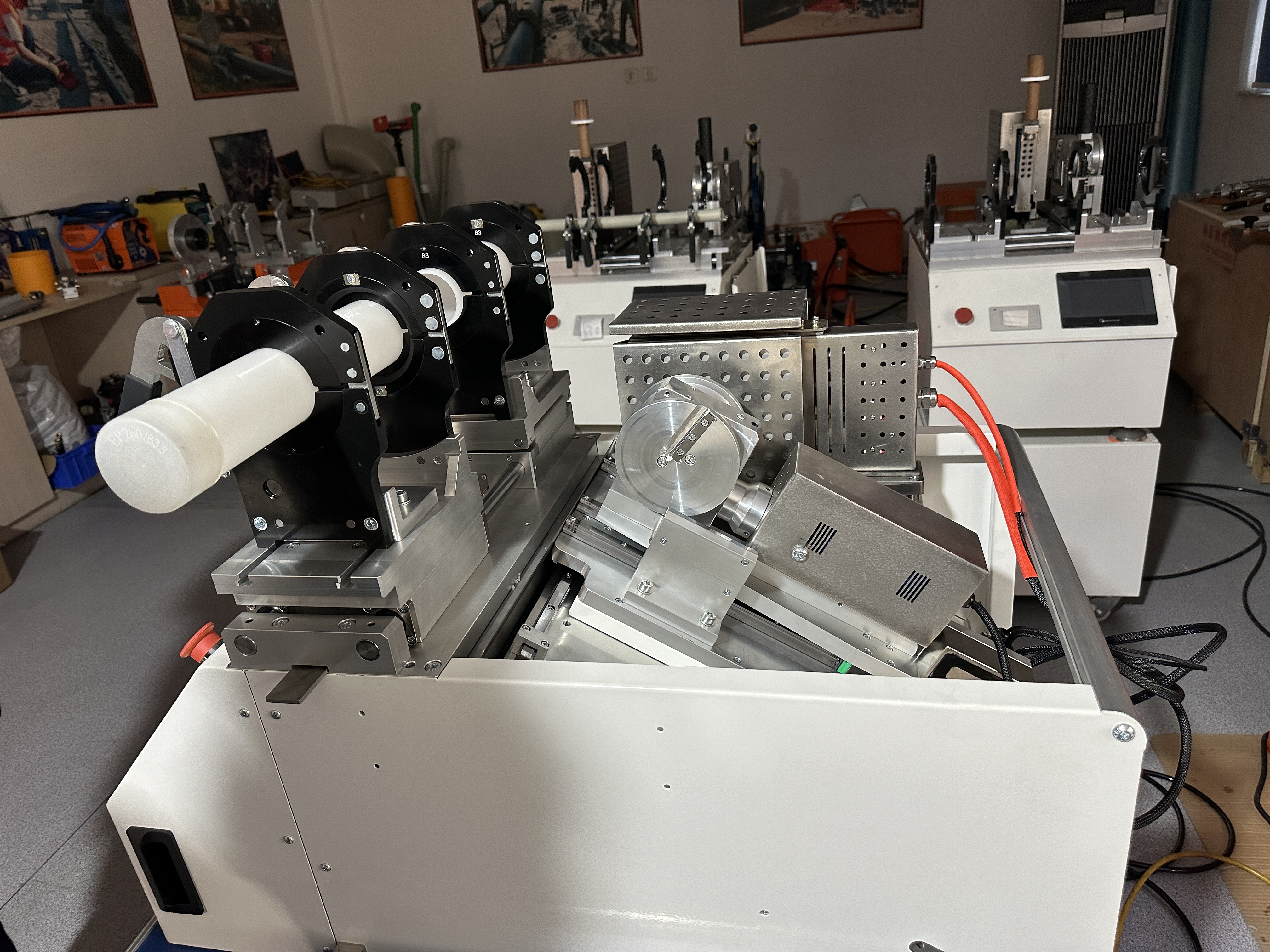

Benefits for High-Purity Water Pipelines

Contamination Prevention

You want your water to stay pure from the source to the end user. The main reason you choose an Infrared Welding Machine is to keep your pipeline free from contamination. The non-contact process means the heater never touches the pipe. This stops dirt, dust, or burnt plastic from entering your water. You get a smooth, clean weld every time.

Traditional butt fusion welding can cause problems. The heated plate touches the pipe and may leave behind particles. These particles can pollute your water. You do not want that in high-purity systems. The table below shows some common problems with traditional butt fusion welding:

Limitation	Description
Misalignment	Can lead to an uneven bead, affecting the integrity of the weld.
Insufficient heat soak	May cause channels between beads that are too large, compromising purity.
Need for redoing the fusion	If the bead does not meet standards, the fusion process must be restarted.

You avoid these risks with infrared welding. You get joints that are free from unwanted particles. This keeps your water safe and meets strict industry rules.

Consistent Weld Quality

You need every weld to be strong and reliable. Consistency is key in high-purity water pipelines. The Infrared Welding Machine uses automation to make sure each weld is the same. You do not have to worry about mistakes or weak spots.

You can trust that every joint will meet your standards. You do not have to redo welds or worry about leaks.

Reduced Maintenance and Downtime

You want your system to run smoothly with little interruption. Infrared welding helps you reach this goal. The smooth, small internal beads mean you do not need to clean or shave the inside of the pipe after welding. You save time and effort.

You also avoid the need for extra checks like X-rays or acid flushing. The machine’s automation and precise controls make sure each weld is strong and pure. You spend less time fixing problems and more time running your system.

Tip: When you use an Infrared Welding Machine, you lower your maintenance costs and reduce downtime. Your pipeline stays clean and works longer without trouble.

You see why many industries choose this technology for high-purity water pipelines. You get clean joints, steady quality, and less work over time.

Comparison and Applications

Infrared vs. Traditional Welding

You want joints that are clean and strong. Infrared welding is better than butt fusion and electrofusion. Traditional welding uses a hot plate that touches the pipe. This can leave behind bits of plastic. It can make big, uneven beads inside the pipe. These beads can trap bacteria. They can slow down water flow.

Infrared welding uses heat without touching the pipe. The heater does not touch the pipe. This keeps the weld area smooth and clean. You get joints that do not have dirt. They meet strict purity rules. You also save time and money. Here is how:

You finish welding jobs faster. This helps you finish projects on time.
You spend less on renting equipment. The work goes quickly.
You lower your project costs. You need less maintenance and fewer repairs.

You also get joints that are strong and last longer. This means you do not worry about leaks or failures.

Industry Use Cases

Many industries use infrared welding for pure water pipes. You see this technology where cleanliness is very important:

Laboratories use non-contact welding to keep water pure. They meet international rules.
Semiconductor factories need no contamination. They need smooth welds for their work.
Pharmaceutical companies want strong, clean joints. This protects their products.
Food and drink plants use this method. It stops bacteria and keeps systems safe.

You can trust infrared welding. It gives clean and reliable results for every project.

You want your water pipes to be safe and clean. Infrared welding machines help you do this. They give you:

Joints that are clean and strong, with no dirt
Welds you can trust that follow important rules
Less time fixing problems and less system stoppage

Pick smart machines like MM-Tech’s IR-110 CNC. This keeps your pipes safe and helps you follow the rules.

FAQ

Why should you choose infrared welding for high-purity water pipelines?

You get joints that are much cleaner. Infrared welding stops dirt from getting in. You can meet strict purity rules. This method keeps water safe for important uses.

Why does the IR-110 CNC machine help you reduce maintenance?

The machine makes welds that are smooth.
You do not need extra cleaning.
You spend less time fixing things.

Why do industries like pharmaceuticals and semiconductors use infrared welding?

Industry	Reason for Choosing Infrared Welding
Pharmaceuticals	You keep products safe from dirt and germs.
Semiconductors	You make sure water stays clean and steady.
