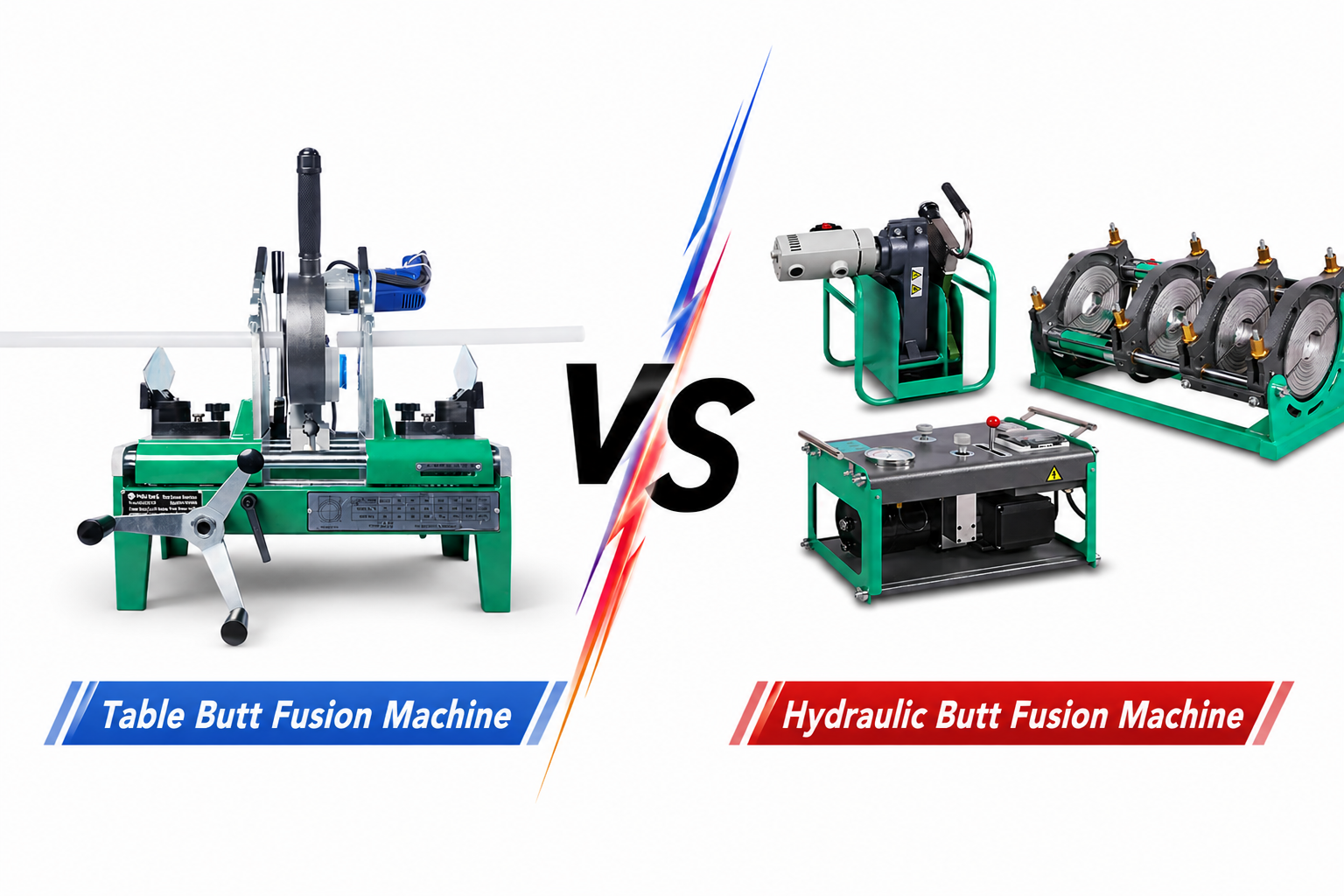

Hydraulic Butt Fusion Welding Machine vs Table Butt Fusion Welding Machine

Comparing Two Welding Machine Types

Explore the differences between hydraulic and table butt fusion welding machines.

You need to pick the right butt fusion welding machine for your work. A hydraulic butt fusion welding machine is best for big jobs. It gives you strong pressure control. A table butt fusion welding machine helps you weld at exact angles in a workshop.

• Portable hydraulic units are made from strong aluminum alloy. They have parts you can take off for hard places.

• Table machines use heavy steel frames and clamps. These help you weld at different angles with accuracy.

Key Takeaways

• Pick a hydraulic butt fusion welding machine for big jobs and outside work. It gives strong pressure control and welds big pipes faster.

• Use a table butt fusion welding machine in a workshop. It lets you weld at different angles. This is good for making custom fittings.

• Take care of your welding machine often. This stops problems and keeps it working well. It also saves you time and money.

Choosing the Right Butt Fusion Welding Machine

When to Use a Hydraulic Butt Fusion Welding Machine

Pick a hydraulic butt fusion welding machine for big pipes or long jobs. This machine is great for field work, like water lines or gas pipes. It gives strong pressure control, so joints do not leak and last a long time. The hydraulic system pushes with steady force. This keeps the welds even and lowers mistakes. You get good results every time.

If you need to weld many joints fast, this machine helps you work quicker. It has controls that set pressure and heat by themselves. This means you can finish more welds in less time. The welds stay strong, even in hard places. The machine works with big pipes, so it is good for large projects.

Here is a quick comparison to help you choose:

Think about these good things about this machine:

• Welds are even and always the same

• Joints are strong and safe

• Controls do some work for you

• You can use it in many jobs

If you work on big sites or weld pipes in trenches, this machine gives you power and trust.

When to Use a Table Butt Fusion Welding Machine

A table butt fusion welding machine is best for workshops. Use this machine when you need to weld pipes at exact angles. The heavy table keeps everything still, so you can be very careful. It is good for making elbows, tees, and other pipe parts before you take them to the job.

You do not need much room to use this machine. It fits well in small shops or factories. If you are new to welding, this machine is easier to use. The screen and simple buttons help you set the right heat and pressure.

This machine works well with small pipes and parts. You can make special shapes and angles for custom jobs. The table lets you do the same weld again and again, so your work looks the same each time.

Tip: If you need very careful welds and work inside, pick a table butt fusion welding machine.

When you know what your project needs, you can pick the best machine. Think about pipe size, where you work, how much money you have, and your team’s skill. This will help you get good welds every time.

Design and Structure Comparison

Hydraulic Machine Components and Features

Hydraulic butt fusion welding machines are made to give good welds. They use a hydraulic pump and cylinder to push pipe ends together. The main body has a strong frame that holds everything tight. Clamps keep the pipes in place while you weld. The heating plate uses new technology and has a digital controller. This lets you set the heat exactly right.

Here are some important parts and features of a hydraulic butt fusion welding machine:

• Main body with a tough frame

• Heating plate with digital heat control

• Trimming unit for pipe ends

• PLC-based electro hydraulic unit for easy use

• Trimmer and heating plate stand for safety

• Stub end device and reduce clamp inserts for more options

• Optional pipe roller to move pipes easily

• Extra features like a microprocessor-based PID controller, pressure gauge, digital timer, and PU seals

These machines are strong and last a long time. The special features help you control heat and pressure. This means your welds are always the same and strong.

Note: Keep the machine clean and check all parts before welding. This stops mistakes and helps your machine last longer.

Table Machine Construction and Features

Table butt fusion welding machines are built for steady work and easy use. They have a heavy steel workbench that keeps the machine from moving. Clamps can turn to different angles. This lets you make elbows, tees, and other shapes with care. These machines have smart features like programmable heating and real-time thermal checks. This helps you control the weld and lowers mistakes.

Many people say these machines are easy to use. You can set heat and pressure with simple buttons or a digital screen. The strong build means you can use it for years. Automatic systems are common now. They help you work faster and make fewer errors.

A table butt fusion welding machine gives you:

• A strong base for welding

• Clamps that turn for different angles

• Smart features for easy use and better welds

• High durability for daily work

These machines help you do good welds and finish jobs with less work. The smart features and tough build make them a good pick for workshops.

Application Scenarios for HDPE and More

Field Welding and Large-Diameter Pipes

You often see hydraulic butt fusion welding machines on big construction sites. These machines work best when you need to join long stretches of hdpe pipe. You can use them for water supply lines, gas pipelines, and sewage systems. The strong pressure control helps you make solid hdpe joints that last for years. You also find these machines in mining and industrial projects. They handle large-diameter hdpe pipes with ease. When you use a hydraulic hdpe pipe jointing machine, you get even welds and fewer leaks. This machine lets you work in trenches or open fields. You do not need a workshop. You can move the machine to where you need it. The hdpe pipe jointing machine gives you the power to finish big jobs quickly.

• Water supply projects

• Gas pipeline installations

• Sewage and drainage systems

• Mining and industrial pipe jointing

Tip: Choose a hydraulic machine if you need to weld large hdpe pipes outdoors or in tough conditions.

Workshop Fabrication and Fittings

You use a table butt fusion welding machine when you need to make special hdpe fittings. This machine works best inside a workshop. You can join pipes at different angles and make elbows, tees, or crosses. The table keeps the hdpe pipe steady. You get precise jointing every time. If you want to make many hdpe fittings that look the same, this machine helps you do that. The table design lets you control the welding process closely. You can set the right heat and pressure for each hdpe pipe jointing job. This machine is perfect for small to medium hdpe pipes. You can also use it for custom projects that need exact shapes.

• Fabrication of elbows, tees, and crosses

• Prefabrication for water treatment plants

• Custom hdpe pipe jointing in workshops

Note: Pick a table butt fusion welding machine for high-precision hdpe welding and fitting fabrication.

Technical Performance and Standards

Welding Quality and Precision

You want your hdpe pipes to be welded well. Hydraulic butt fusion welding machines work great outside. They use strong pressure and steady heat. This helps you make perfect joints every time. The hydraulic system makes each weld look the same. Welds stay strong even when stressed. You can trust these machines for big jobs.

Table butt fusion welding machines also work very well. They are best in workshops. You get high precision for special fittings or angles. The table keeps the hdpe pipe steady. This helps you control the weld and get clean joints. Both machines are reliable for a long time. The table machine gives you more control for small, detailed work.

Tip: Use hydraulic machines for big hdpe pipes outside. Use table machines for custom fittings and precision.

Compliance with International Standards

Hydraulic and table butt fusion welding machines must follow strict rules. These rules make sure the machines work well and are safe. You should pick machines that meet important international standards:

• ISO 21307: Sets rules for hdpe welding in water and gas systems. It covers temperature, pressure, and data logging for performance.

• DVS2207/1: Checks precision and reliability in chemical and industrial hdpe jointing. It looks at surface finish and post-weld inspection.

• ASTM F2620: Used in North America for gas pipelines. It needs pressure testing and hydraulic precision for long-term reliability.

If your machine meets these standards, you get safe and strong hdpe welds. This helps you trust your joints and makes your projects last.

Cost and Efficiency Analysis

Investment and Operating Costs

When you pick a butt fusion welding machine, think about the price and running costs. Hydraulic machines cost more to buy. They have strong frames and special features. This higher price gives you better work and more automation. You can finish big jobs faster with these machines. Table machines are cheaper at first. They fit in small workshops and use less power. You save money if you only weld small pipes or fittings.

How much you spend to run the machine depends on how often you use it and the job type. Hydraulic machines use more energy but weld faster. This helps you finish big jobs quickly. Table machines use less energy and need less space. You can plug them into normal outlets, which is good for small shops. Both machines last a long time if you take care of them.

Productivity and Maintenance

How much you get done depends on speed and quality. Hydraulic machines work fast and well for big pipes. You can weld many joints quickly. Automation keeps the welds steady and lowers mistakes. Table machines are best for careful work and special shapes. You get good results for custom jobs.

Taking care of your machine is important. Here are some problems you might see:

You can make your machine last longer by checking it every day and doing regular care. This keeps it working well and stops big problems. Both machines need care, but good habits help you save money and avoid stopping work.

Butt Fusion Welding Machine Selection Guide

Matching Machine to Project Needs

Picking the right butt fusion welding machine helps your project go well. You need to think about how big your project is. Look at what kind of pipe you will use. Think about where you will do the work. Each machine is good for different jobs. The table below shows how the machines are different:

You should match your machine to your job by thinking about these things:

• Check your project plans. Look at local rules and what your client wants, like ASTM, ISO, or DVS.

• See what kind of pipe you have. Big or thick HDPE pipes need strong machines.

• Some places have special rules you must follow.

• If you work outside, you need a machine you can move. If you work inside, you need a steady table.

• Make sure your machine can handle the job. It should control pressure and keep records if you need that.

• Always pick a machine and welding way that fits your job, the place, and what your contract says.

If you want to weld long pipes outside fast, use a hydraulic butt fusion welding machine. If you need to make elbows or tees with care, use a table butt fusion welding machine in your shop.

Tip: Pick a machine that matches your project’s size, place, and how careful you need to be. This helps you work faster and follow the rules.

Decision-Making Checklist

Use this checklist to help you pick the right butt fusion welding machine:

• What size and kind of pipe will you use?

• Will you weld outside or in a shop?

• Do you need to weld at special angles or just straight?

• What rules do you need to follow (ASTM, ISO, DVS)?

• Is it important to finish the job quickly?

• Do you need special features like data logging or automation?

• Can you get good help if your machine breaks?

• How much money do you have for the machine and repairs?

• Can you get spare parts and help when you need it?

• Will your team need training to use the machine safely?

You can use this list before you buy a machine. It helps you pick the right one and not make mistakes.

Key Questions Before Purchase

Before you buy a butt fusion welding machine, ask yourself these questions:

• Does the machine have a strong hydraulic system to keep pressure steady?

• Can the heating plate stay hot with a tough PTFE coating?

• Is the frame strong enough to keep pipes lined up right?

• Does the machine record time, heat, and pressure?

• Will you get quick help and training for your team?

• Does the company give good support and help all day and night?

• How long is the warranty, and what does it cover?

• Is the box strong enough to keep the machine safe when shipped?

• Will you get help with shipping and delivery?

Note: Good help and training keep you safe and help you work better. Always check the warranty and after-sales help before you buy.

When you answer these questions, you make a smart choice. You get the right butt fusion welding machine for your job. Your project goes well and follows all the rules.

You need a hydraulic butt fusion welding machine for big pipes and outside jobs. Use a table butt fusion welding machine in workshops for fittings and exact angles.

Key points to remember:

• Butt fusion makes joints that are strong and safe for high-pressure jobs.

• Doing regular care and learning how to use the machine stops problems.

Always pick the machine that fits your project. Ask experts if you are not sure.

FAQ

What is the main difference between a hydraulic and a table butt fusion welding machine?

Hydraulic machines are good for big pipes outside. Table machines work best for small pipes in workshops. Each machine is made for different jobs.

Which machine gives better weld quality for large projects?

Hydraulic butt fusion welding machines make better welds for big projects. They use strong pressure and steady heat for long pipes.

Can you use both machines for HDPE pipes?

Both machines can weld HDPE pipes. Use hydraulic machines for big pipes outside. Use table machines for fittings and exact angles.
