What is a Bench Socket Fusion Welding Machine and Its Main Uses?

mmtech

·May 27, 2026

·6 min read

A Bench Socket Fusion Welding Machine lets you join thermoplastic pipes and fittings very accurately. You get better results than with hand tools. The machine controls the heat, keeps things lined up, and sets the right time.

People use these machines in building, plumbing, and factories. They help make sure pipe connections do not leak and are dependable.

Key Takeaways

A Bench Socket Fusion Welding Machine makes strong joints. It keeps them from leaking by using the right heat and pressure.
This machine helps you work faster and easier. It is simple to use for new users and skilled workers.
It follows tough rules set by the industry. This makes it work well in jobs like plumbing, chemical piping and workshop pre-fabrication.

Bench Socket Fusion Welding Machine: How It Works

Heating and Joining Process

First, you get the pipe and fitting ready. Both must be clean. The machine has a heating element that melts the ends. Preheating helps the machine reach the right temperature. The heating element touches both ends and melts them evenly. When the plastic gets soft, you push the pipe and fitting together. This makes a strong, leak-proof bond.

Here is what happens during heating and joining:

The heating element gets hot enough to melt the ends.
Preheating helps the machine stay hot from the start.
Clean ends help the plastic stick well.
The heating element melts both ends evenly.
You join the melted ends to make a strong bond.

You must use the right temperature for each plastic.

Mechanical Precision and Alignment

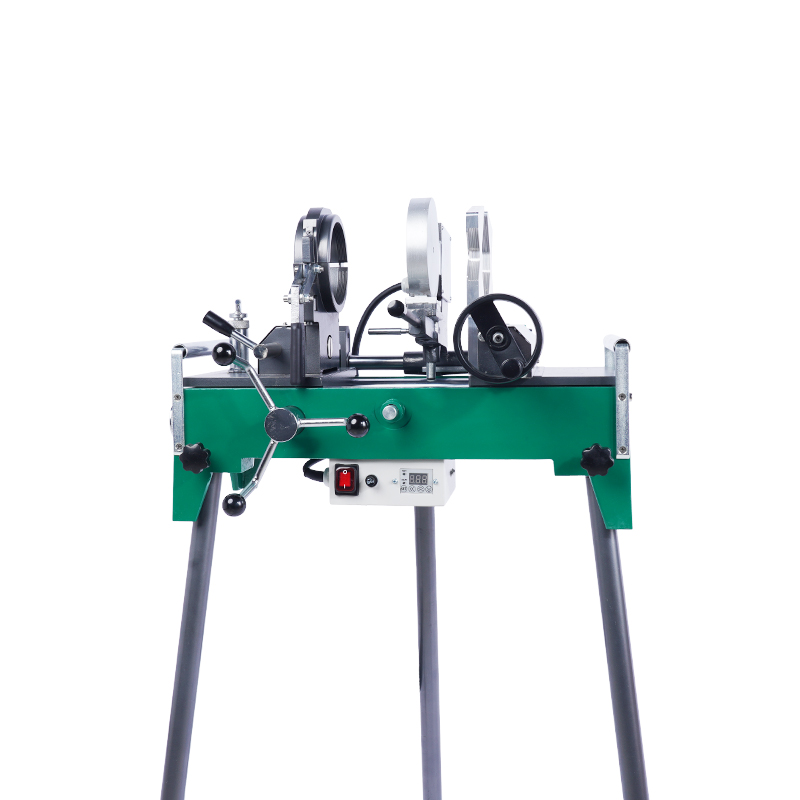

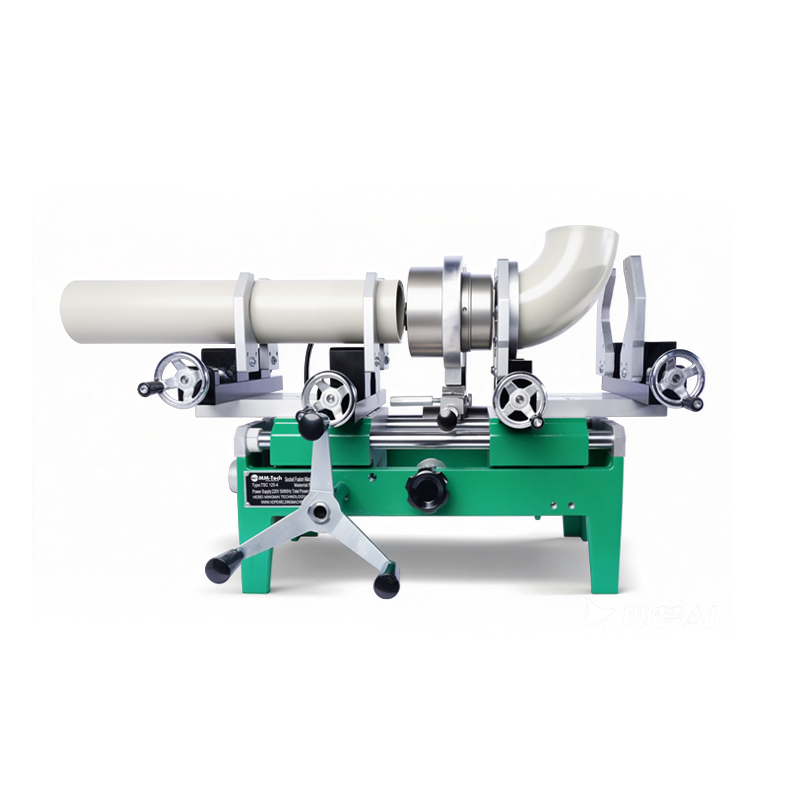

A bench socket fusion welding machine uses special parts to help you make good joints. The machine has clamps that hold the pipe and fitting tight. Linear guide rails keep everything straight. This setup makes sure the pipe and fitting line up just right. You do not have to worry about tilting or uneven pressure.

The table below compares manual and mechanical methods:

Feature	Manual Methods	Mechanical Methods
Alignment	Visual/Manual (High risk of tilt)	Mechanical Rails (Precision alignment)
Depth of Insertion	Variable, prone to human error	Controlled, precise depth management
Pressure Control	Inconsistent, varies by operator	Automated, consistent pressure
Risk of Defects	High	Low

With a bench socket fusion welding machine, you get the same result every time. The machine controls the pressure and depth. This helps you avoid mistakes like cold joints or leaks. Your work is safer and more reliable.

Compliance with Industry Standards

You want your pipe joints to last and follow safety rules. Bench socket fusion welding machines meet strict international standards. DVS 2208-1 is an important standard for thermoplastic pipe welding. It tells how the machine should work. Many machines also follow ISO standards, which are used worldwide.

Global rules shape how these machines are made. Groups like the Plastics Pipe Institute use new research to set the best ways to weld. They also teach people how to use the machines. Makers use advanced technology to make the machines safer and better. Quality control is strict, so there are very few defects.

Note: If you pick a bench socket fusion welding machine that meets these standards, your work will be safe, strong, and ready for any job.

Applications and Industry Uses

A Bench Socket Fusion Welding Machine is used in many fields. It helps join pipes where safety and strength are important. You need leak-proof pipes in these places. Here are some main ways people use this machine.

Commercial Plumbing and HVAC

These machines are found in big buildings, hospitals, and schools. They help make strong joints in water and heating systems. Leaks can cause big trouble and cost a lot to fix.

The joints do not leak.
The machine melts the pipe and fitting together.
The bond is strong and lasts for years.
Many jobs need these machines for safe plumbing.

Using this machine means every joint meets high standards. This keeps water systems safe and working well.

Industrial Fluid and Chemical Piping

Factories and chemical plants move liquids and gases safely. The machine joins pipes made from special plastics like PE, PP-R, PVDF, and PP-H. These plastics resist chemicals and heat.

Feature	Description
Lightweight	You can use it easily, even in small spaces.
Quick learning	You learn fast and work safely.
Uniform heater	The heat is even, so joints are good.
Stable base	The machine stays steady, making welding safer.
Suitable for various materials	You can use it with many kinds of chemical pipes.

Pre-Fabrication and Workshop Assembly

Some companies build pipe parts in workshops first. The machine helps make complex pipe assemblies there. This lets you work faster and more accurately.

You make many joints quickly and well.
The machine controls the process, so there are fewer mistakes.
Pipes arrive ready to install, saving time at the job site.

Heating, and Water Treatment

Heating plants, and water treatment places use lots of pipes. These pipes must handle pressure, and tough conditions. The machine makes sure every joint is tight and safe.

Joints can handle movement and stress.
The machine works with plastics that do not rust.
You help keep water clean and systems working right.

These jobs need equipment that meets world standards. Many companies use rules from groups like MM-Tech to get the best results.

Note: Using a Bench Socket Fusion Welding Machine helps make safe, leak-proof, and long-lasting pipe systems in many industries.

Key Features and Benefits

Welding Strength and Leak-Proof Security

You want pipe joints to be strong and safe. A bench socket fusion welding machine makes strong, leak-proof joints. The machine uses the right pressure and heat. This creates a bond that lasts a long time. You do not need to worry about leaks or weak spots. The table below shows how special parts help you get good results:

Material and Diameter Range

This machine works with many pipe types and sizes. It can handle materials like PP, PVDF, PE and PB. The table below shows some models and what they can do:

Machine Model	Pipe Diameter Range	Thermoplastic Materials
Prisma90	20mm to 90mm	PP, PVDF, PE and PB
Prisma110	25mm to 110mm	PP, PVDF, PE and PB
Prisma160	50mm to 160mm	PP, PVDF, PE and PB
TSC90	20mm to 90mm	PP, PVDF, PE and PB
TSC125	20mm to 125mm	PP, PVDF, PE and PB
TSC160	50mm to 160mm	PP, PVDF, PE and PB

You can pick the best machine for your job. This helps you work on many projects.

Adaptability and Durability

You need a machine that works in many places and lasts long. Bench socket fusion welding machines use strong parts and smart design. They keep working well, even in tough spots.

High welding strength
Accurate operation
Fits many pipe sizes and materials
Built to last

Note: You can trust your machine to handle big jobs and keep working for years.

You use a Bench Socket Fusion Welding Machine to make pipe joints that do not leak. This machine is used in many industries. You can avoid problems if you get pipes ready, clean them well, and use the right materials. You get good results when you follow the rules for your industry. It is important to check technical standards for safe pipe connections.

FAQ

What materials can you weld with a bench socket fusion welding machine?

You can weld PPR, PE, PB, PPH, and PVDF pipes. These pipes are used in plumbing, chemical, and factory pre-fabrication. They work well for moving water or chemicals.

What makes a bench socket fusion welding machine different from a handheld welder?

A bench machine keeps pipes lined up better. It controls pressure so joints are stronger. This means leaks are less likely to happen.

What safety features should you look for in these machines?

You should look for automatic temperature control. Secure clamps hold pipes tight. Insulated handles help protect your hands. These features help keep you safe from burns or accidents.
