Understanding Saddle Fusion Welding Machines for Reliable Pipe Connections

A saddle fusion welding machine helps you connect pipes. It makes strong and leak-proof branch connections. You use this machine to make HDPE reducing tees and other fittings. The fusion is very exact. MM-Tech is a leader in this field. They have high production capacity. Their after-sales service is great. Their international sales are growing.

• MM-Tech is known as a top thermoplastic welding equipment maker in China.

• The company cares about customer happiness and good welding results.

Key Takeaways

• Saddle fusion welding machines make strong pipe connections. These connections do not leak. They are very important for water and gas jobs.

• Getting pipes and fittings ready helps make better welds. Always clean the surfaces first. Make sure to hold them in place before welding.

• Taking care of the machine helps it work well. Wear safety gear and make sure there is fresh air. This keeps everyone safe while working.

What Is a Saddle Fusion Welding Machine?

Core Function and Principle

A saddle fusion welding machine lets you make strong pipe branches. It helps you join a saddle fitting to the main pipe wall. The fusion process uses heat, pressure, and timing. You follow steps to make sure the joint does not leak.

The saddle fusion welding machine from MM-Tech follows strict rules like DVS 2207, ISO 21307, and ASTM F2620. These certifications show the machine makes safe and tough welds. You can count on the machine for good results every time.

The fusion works at the tiny molecule level. First, you heat the main pipe and saddle fitting with a Teflon-coated plate. The plate gets very hot, between 200°C and 240°C for HDPE pipes. When the surfaces melt, you take away the plate and press the parts together. The melted plastic sticks and forms one solid joint. This bond is very strong and can be as strong as the pipe itself. Saddle fusion joints can handle high pressure and stress.

You must watch the heat, pressure, and timing. If you miss a step, the weld might not work. The table below shows important welding details:

You follow these rules to make sure the fusion works every time.

Key Components and Structure

A saddle fusion welding machine has many important parts. Each part helps you make a good weld.

• Heavy-Duty Machine Body: The machine body gives a strong base. It keeps the machine steady during welding. You get accurate welds every time.

• Main Pipe Clamping System: This system holds the main pipe still. Hydraulic clamps keep the pipe from moving. You avoid slips or twists.

• Branch/Saddle Clamping System: This fixture holds the saddle fitting tight. It keeps the fitting lined up right.

• Specialized Heating Plates: The heating plates have Teflon coating. They heat the main pipe and saddle fitting. You change plates for different pipe sizes.

• Integrated Drilling System: After welding, you use the drilling system to cut out the main pipe wall. This saves time and makes the job easier.

The table below shows how each feature helps you:

MM-Tech machines also meet important certifications:

You get a machine that is safe, reliable, and simple to use. The saddle fusion welding machine helps you make strong fusion joints for water, gas, and industrial pipes. You can trust the machine to give you high-quality welds every time.

Saddle Fusion Welding Process and Operation

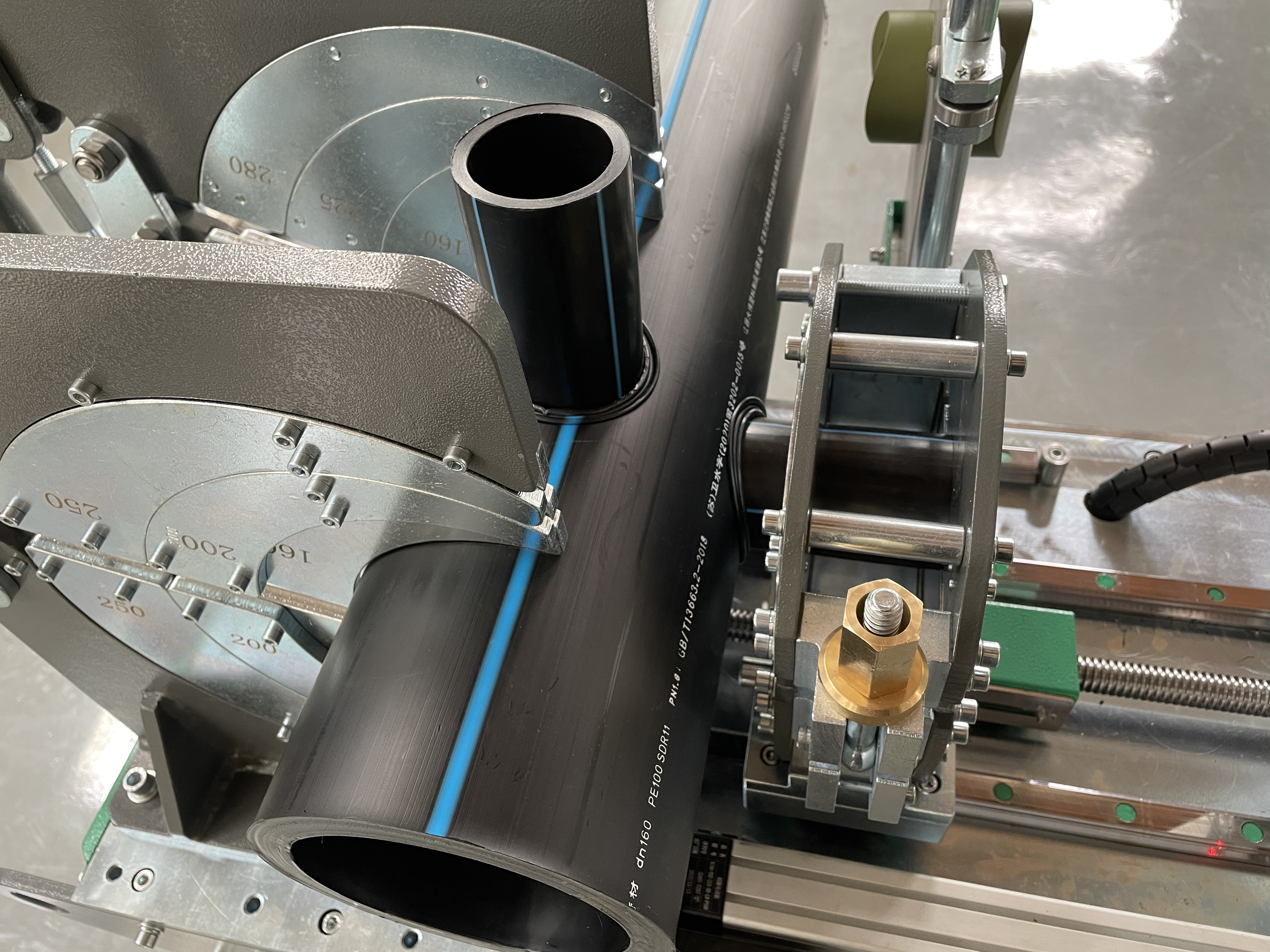

Preparation and Alignment

First, get your work area and tools ready. Always wear gloves and safety glasses to stay safe. Check if your machine is clean and working well. Make sure your workspace is dry and has no trash. Clean the hdpe pipes and fittings before you start. Scrape off any old or damaged material. This helps the fusion stick better. Put the saddle fitting straight on the pipe. Lock both the pipe and fitting in the clamps. This keeps them from moving while you weld.

Tip: If you prepare and line up everything well, your welds will be strong and not leak.

Welding Steps and Quality Control

Here are the steps for a strong fusion joint:

1. Heat the bottom of the pipe and the saddle fitting with the Teflon-coated heating plate. The digital temperature control keeps the heat at the right level.

2. When the surfaces melt, take away the heating plate fast. Push the parts together with the right amount of pressure.

3. Hold the pressure steady as the joint cools. Do not hurry this part.

4. Let the weld cool by itself. Do not use water or fans to cool it.

Always follow the welding rules. Clean between welds if you need to. Keep your welding steady and careful. Look at the weld bead to see if it is smooth and even. This means your fusion is strong.

MM-Tech Advantages in Workshop Use

MM-Tech’s saddle fusion welding machine has many good points for your workshop. The hydraulic system lets you control the pressure very well. The digital pressure meter shows you the exact number. The Teflon-coated heating plate stops things from sticking. The automatic process and touch screen make the machine easy to use, even for beginners. You do not need much training. The safety features keep you safe while you work. The digital temperature control gives you good fusion results every time.

You can count on this machine to make strong welds for all your pipes.

Applications and Benefits of Saddle Socket Fusion Welding Machine

Industrial and Workshop Uses

A saddle socket fusion welding machine can be used in many places. It works well for branch pipe welding on big pipes, like 800–1600mm mains. You often see it in water supply and gas projects. Industrial pipeline jobs use this machine too. You can weld hdpe pipes in different sizes. The machine helps you make reduced fittings by joining main and branch pipes. You make branch connections by attaching a saddle-shaped fitting to a pipe. This process needs little digging, so it is good for repairs and upgrades.

Cost, Efficiency, and Structural Advantages

You save money when you use a saddle socket fusion welding machine. Electrofusion fittings cost more because they have extra parts inside. The saddle socket fusion welding machine uses simple plastic fittings, so your costs go down. You get strong, leak-free connections that last a long time. The machine gives you exact and tough fusion joints. You can use many thermoplastic materials, so your project stays flexible. The saddle socket fusion welding machine cuts waste and speeds up your work. You finish jobs faster and avoid mistakes or doing work again.

Maintenance and Troubleshooting Tips

You keep your saddle socket fusion welding machine working well by following easy steps. Always check the machine before you start. Wear safety goggles, gloves, and heat-resistant clothes. Make sure your workspace has good airflow. Clean the area and look for damage. Handle hot parts carefully and let the machine cool before touching. Follow the maker’s rules for welding and fusion. Train workers and have a clear emergency plan. MM-Tech gives you a two-year warranty and strong after-sales help. You get help fast if you need it.

Tip: Good maintenance and safety habits help you get the best results from your saddle fusion welding machine.

When you use a good saddle fusion welding machine, your pipes work better. The machine makes strong pipe joints by pressing evenly. MM-Tech helps you with new welding ideas and quick customer support. You get fast fusion results and help that fits your workshop or factory needs.

FAQ

How do you choose the right saddle fusion welding machine?

You should check pipe size, material, and workshop needs. MM-Tech offers machines for HDPE, PP, PPR, and PVDF pipes.

What safety steps should you follow during welding?

• Wear gloves and goggles.

• Keep your workspace clean.

• Check machine parts before starting.

Can you use the machine for different pipe materials?
