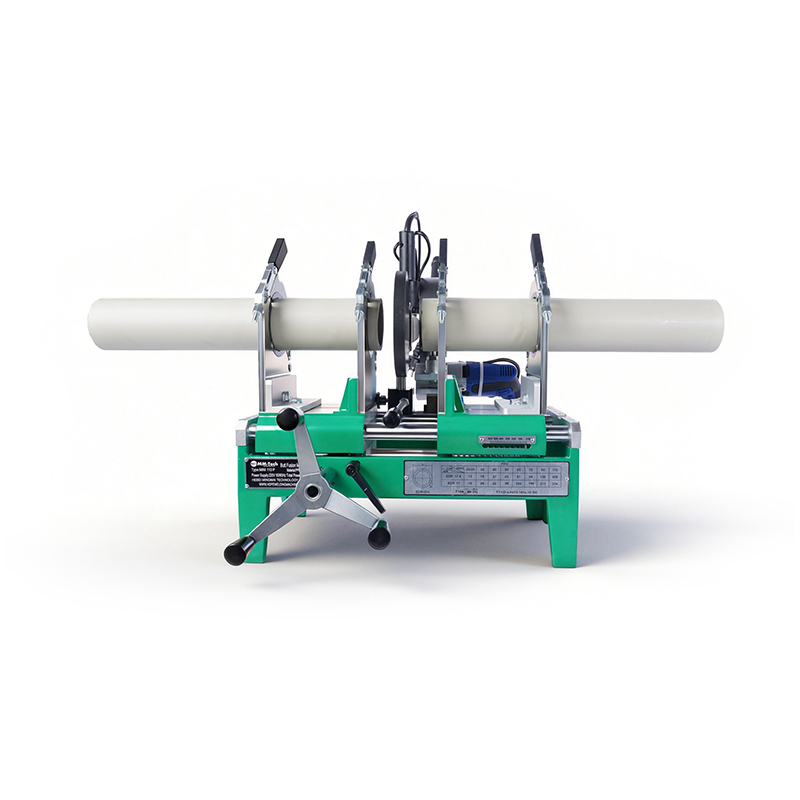

Understanding Table Manual Butt Fusion Welding Machines and Their Main Applications

You use a table manual butt fusion welding machine to join thermoplastic pipes and fittings in many industries. This tool is used by hand. It helps you make strong and smooth pipe connections. It does this by heating and pressing the pipe ends together. MM-Tech makes table manual butt fusion welding machine models you can count on for your projects. The MINI-160P is a manual model. It is good for welding jobs that need careful work. You can trust this machine to give you good results every time you weld.

Key Takeaways

• Table manual butt fusion welding machines help join thermoplastic pipes. They make strong and reliable pipe connections.

• The MM-Tech MINI-160P is a flexible model. It can weld different pipe sizes and materials. This makes it good for workshops and small projects.

• Operators must follow a simple welding process. They need to clean, clamp, cut, heat, and cool the pipes. This helps make high-quality welds.

• Manual machines are cheaper and easy to carry.

• Hands-on training is very important for learning the welding process. It helps improve skills and keeps the work safe and effective.

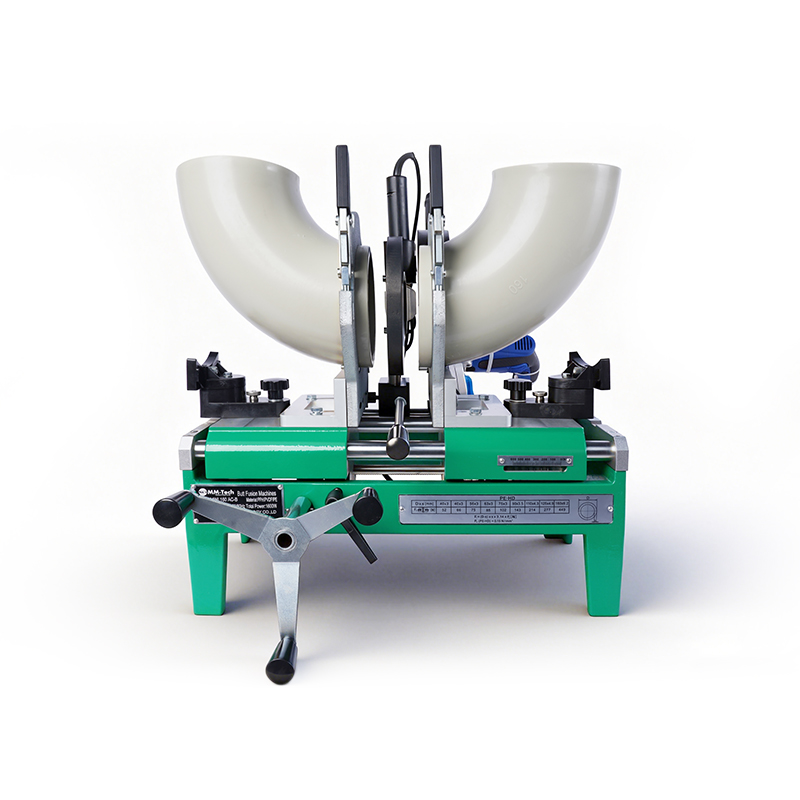

Table Manual Butt Fusion Welding Machine Overview

Definition and Structure

People use table manual butt fusion machines to join thermoplastic pipes. These machines are small and fit on a table or workbench. You use your hands to control the machine. This means you can decide how the welding goes. The shape and size of these machines make them great for workshops, factories, and small building sites.

Manual butt fusion machines help you save money and give you more choices. You can use them for small jobs or special pipe shapes. You get to control the welding, so you can practice and get better at it.

Key Components

When you look at a table manual butt fusion welding machine, you will see some important parts. Each part does something special. The main parts are:

The heating element melts the ends of the pipes. The clamping system keeps the pipes still so the joint is straight. The hydraulic system pushes the pipes together with the right amount of force. The control panel lets you check the heat and pressure while you weld. All these parts work together to help you make strong pipe joints.

Tip: Always make sure the clamping system is tight before you start. This helps stop leaks and weak spots in the joint.

MM-Tech MINI-160P Features

The MM-Tech MINI-160P is a special table manual butt fusion machine. You can use it to join pipes made from HDPE, PP, PPH, and PVDF. It can weld pipes from 40mm to 160mm wide. This size is good for most workshops and small jobs.

Here are some features you will like:

• The MINI-160P has a DuPont Teflon-coated heating plate. This stops melted plastic from sticking and makes cleaning simple.

• The frame is made from strong aluminum alloy. This makes the machine steady and helps it last a long time.

• You can move the clamps to fit different pipe sizes. This means you can use the machine for many kinds of jobs.

• The digital temperature control lets you set the right heat for each pipe.

• MM-Tech gives you a two-year warranty. This means you get help if something goes wrong.

You can use the MINI-160P for water and gas pipes, making pipe fittings in a workshop, and even in mining. The machine is easy to carry and set up. You do not need special lessons to start using it. MM-Tech also gives you training and help after you buy it, so you always have support.

Note: The MINI-160P follows rules like DVS 2207, ISO 21307, and ASTM F2620. This means you can trust that every weld is good.

If you want a strong and easy-to-use butt fusion welding machine, the MM-Tech MINI-160P gives you what you need for safe pipe connections.

Manual Butt Fusion Machines: Working Principle

Butt Fusion Welding Process Steps

You follow a clear process when you use a table manual butt fusion welding machine. Each step helps you make a strong and reliable joint. The process uses heat and pressure to join the pipe ends. You must pay attention to every detail during the welding process. Here is a table that shows the main steps in the butt fusion process:

You repeat this process for each joint you make. The fusion welding process creates a bond that is as strong as the pipe itself.

Operator Control and Precision

You play a big role in the quality of each weld. Your skill and attention to detail matter during the welding process. If you make a small mistake with pressure or alignment, you can weaken the joint. This can cause leaks or failures in the pipe system. You must learn how to control the machine and watch the bead formation closely.

To get the best results, you should complete hands-on training. Many groups, like the Plastics Pipe Institute, the PE100+ Association, and the German Welding Society, offer training and certification. You learn about the physics of the fusion cycle, how to calculate pressure, and how to use safety steps. You also learn to avoid crush zones, manage power safely, and use the right lifting methods. Training helps you understand every part of the welding process and gives you the confidence to make strong, reliable joints.

Tip: Practice makes perfect. The more you use the manual butt fusion machine, the better your welds will become.

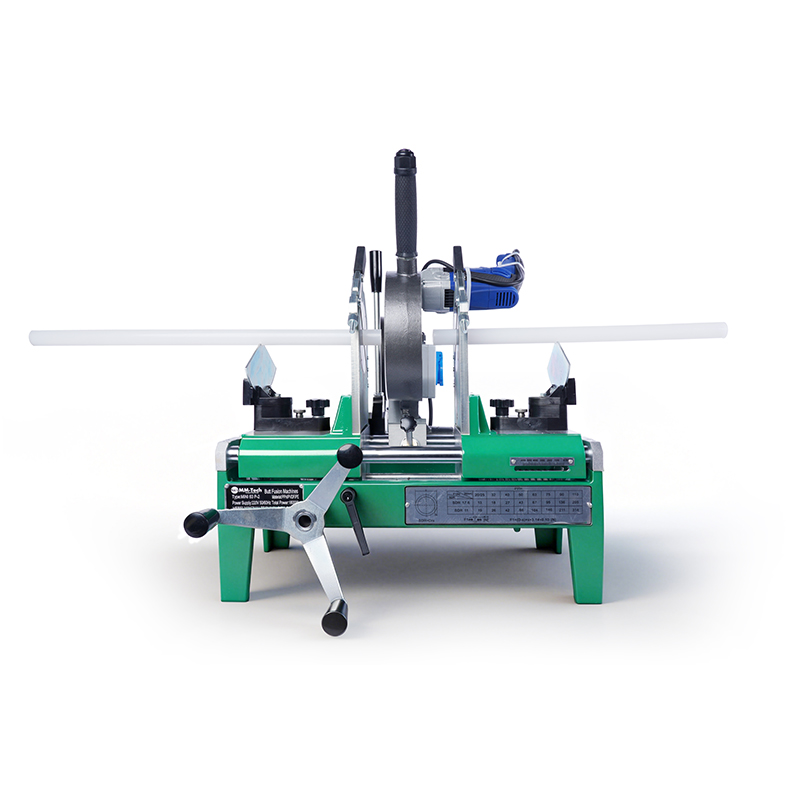

Applications of Table Manual Butt Fusion Welding Machines

Butt fusion machines are used in many fields. They help join pipes and fittings with strong welds. You find them in workshops, water and gas projects, and mining jobs. Let’s see how manual butt fusion machines work in these places.

Workshop Fitting Fabrication

Manual butt fusion machines are common in workshops. They let you make custom pipe fittings. You can create elbows, tees, crosses, and flange adapters. The table design gives a steady base. You clamp pipes tightly for good joints. The MM-Tech MINI-160P is a great example. It joins HDPE, PP, PPH, and PVDF pipes. The clamps adjust to fit many pipe sizes. You control the welding process closely. This helps you make fittings that fit your project.

Note: Manual butt fusion machines make both standard and special fittings. This gives you more choices in workshop jobs.

Water and Gas Pipeline Projects

Butt fusion machines are used for water and gas pipes. They work well for small jobs and faraway places. You can carry the machine and set it up easily. The MINI-160P is light and simple to use. Manual butt fusion machines cost less than automatic ones. Repairs are easy and spare parts are cheaper.

Here is a table showing why manual butt fusion machines are good for water and gas projects:

You must follow safety rules when using butt fusion machines. Check power cords and hoses for damage. Use machines to lift heavy parts. Ground the machine and use GFCI for safety. Cover the fusion area to protect from bad weather.

Manual butt fusion machines help fix pipes fast. They join pipes for underground drainage and tailings. They are used for chemical lines too. The MINI-160P gives strong joints and meets strict rules. You can trust it for good welds in any industrial job.

Manual butt fusion machines have many uses. You find them in workshops, water and gas projects, and factories. The MM-Tech MINI-160P is a reliable machine for all these jobs. You get strong, safe, and lasting pipe connections every time.

Advantages of Manual Butt Fusion Machines

Portability and Flexibility

You can move table manual butt fusion machines easily. These machines help you work in remote or tough locations. You do not need to worry about heavy equipment slowing you down. You can carry the machine to the job site without much trouble.

• Portability gives you more freedom to work where you need.

• You can use these machines in muddy or harsh places because they are built to last.

• You do not face big problems moving the machine compared to large, stationary machines.

• You can take apart the machine for cleaning if the environment gets dirty.

• You should check the power supply to make sure the machine works well.

You get more choices with these machines. You can use them for different pipe sizes and materials. The machine lets you handle many welding jobs, even in small spaces.

Cost-Effectiveness

You save money when you use a manual butt fusion welding machine. These machines cost less than automatic machines. You do not need to buy extra parts or pay for special training. You can fix the machine yourself if something breaks. The machine uses less power, so you pay less for electricity. You can use one machine for many jobs, which means you do not need to buy more machines. This helps you finish projects on a budget.

Tip: You can use the same machine for workshop jobs and field repairs. This saves you time and money.

Quality Assurance with MM-Tech

You want strong and safe pipe joints. MM-Tech makes sure each machine meets high standards. The MINI-160P welding machine follows rules like DVS 2207 and ISO 21307. You get a two-year warranty with your machine. You can ask for help or training from MM-Tech if you need it. The machine gives you steady heat and pressure for every weld. You can trust the machine to make good joints every time. MM-Tech supports you before and after you buy the machine.

Note: You can count on MM-Tech machines for reliable welding in water, gas, and industrial projects.

Best-Use Scenarios

Ideal Projects for Manual Machines

You can use a manual welding machine for many jobs. These machines are great when you want more control. They are often found in workshops. People use them to make special pipe fittings. The machine helps you make elbows, tees, and adapters with care. You can move the clamps and heating plate to fit different pipes. This makes the machine a good pick for small batches.

Manual machines are also used in water supply work. If you need to join pipes in a house or building, the machine makes strong joints that do not leak. You can carry the machine to where you need it. You do not need big tools or extra power. The machine is good for fixing pipes or putting in new ones.

Factories use manual machines. You can fix pipes for draining water. The machine works well even in hard places. It keeps working in faraway spots. You can use it with HDPE, PP, PPH, or PVDF pipes. The machine follows strict rules, so your welds are safe.

Here is a table that shows where you can use manual machines:

Tip: You can use manual machines for new jobs and repairs. The machine gives you control and helps you save money.

You get the best results when you pick the right machine. Manual machines help you work faster and safer. You can trust the machine to do a good job every time.

FAQ

How do you choose the right pipe material for butt fusion welding?

You should select HDPE, PP, PPH, or PVDF pipes. These materials work well with butt fusion machines. Check your project requirements and make sure the pipe matches the welding standards.

Can you use the MINI-160P for outdoor jobs?

Yes, you can use the MINI-160P outdoors. The machine is portable and easy to set up. Always protect the welding area from rain or dust to ensure strong joints.

What safety steps should you follow during welding?

Always wear gloves and safety glasses. Check the machine for damage before starting. Keep the area clean. Use the correct temperature settings. Follow all safety rules from MM-Tech and industry standards.

How long does a typical weld take to cool?

The cooling time for pipes of different sizes varies. Please refer to the operation manual and determine it based on the actual situation. You must let the joint cool fully before moving the pipe.
